Grundfos Expands End-Suction E-Pump Line with Extended Performance Range




Grundfos has expanded the performance capabilities of its intelligent end-suction E-pump family, now delivering up to 4,230 gallons per minute and 532 feet of head. The enhanced range supports more complex commercial and industrial variable-flow systems with greater efficiency and control.

Key Highlights:

  • Expanded hydraulic range: Up to 4,230 gallons per minute and 532 feet of head
  • Ultra-premium efficiency: IE5 permanent magnet motors with integrated variable frequency drives — two levels above NEMA Premium (IE3)

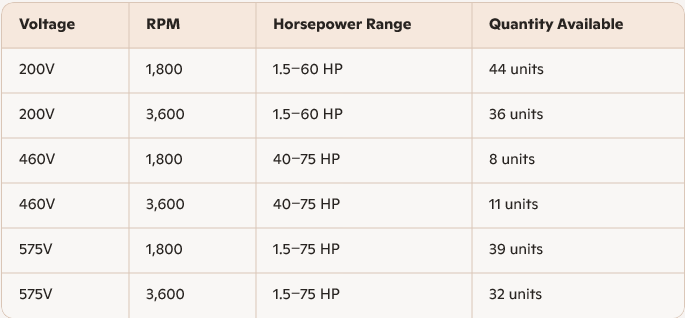

  • Voltage options: IE5 motors available up to 60 horsepower at 200 volts, and up to 75 horsepower at 460 and 575 volts
  • Smart control: Integrated Grundfos CUE now includes BACnet compatibility


Button label

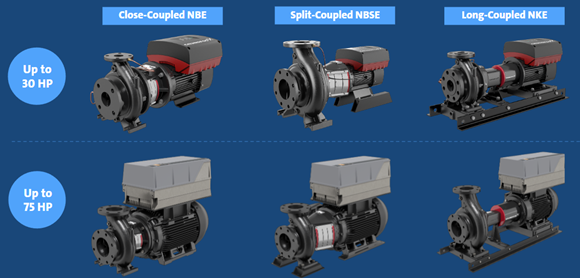

Product Family Overview:

  • NBE (close-coupled): Compact design with integrated PM motor and control; ideal for commercial and light industrial applications
  • NBSE (split-coupled): Allows easy seal replacement without a baseplate; suited for general industrial, HVAC and water supply
  • NKE (long-coupled): Frame-mounted design with service-friendly alignment; built for demanding applications



Availability: In stock now



Service parts, technical documents, and performance data are available through the Grundfos Product Center and Grundfos SELECT.



Grundfos Americas
